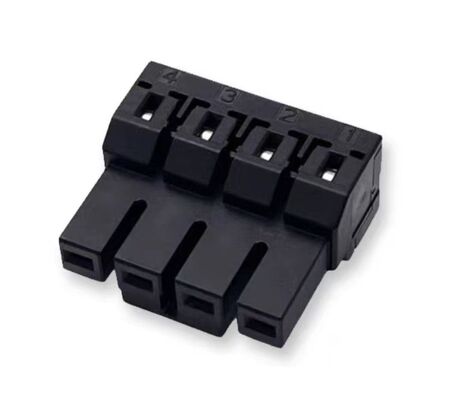

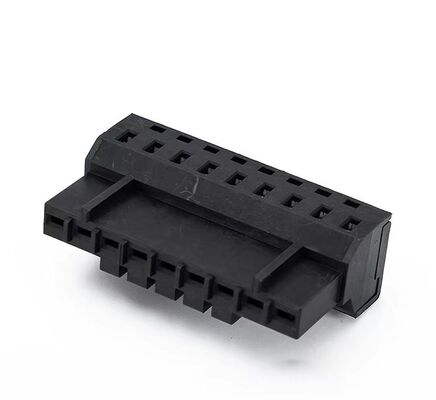

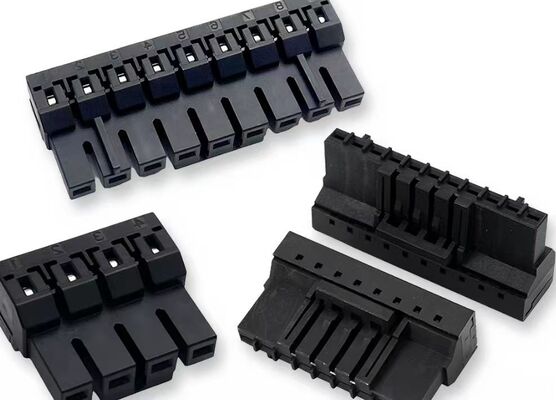

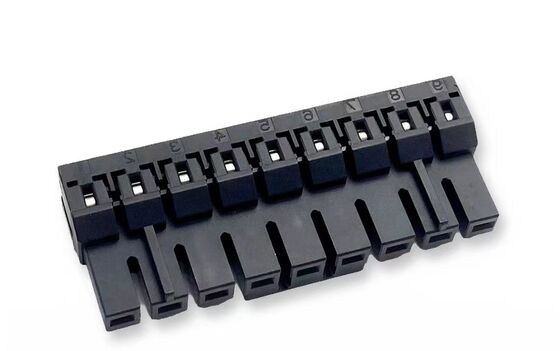

Suitable for servo SV630A/660N/670P/680N series driver UVW connector plug-in terminals

Product Description:

The 6FX2003 Servo Motor Connectors are precision-engineered components designed to meet the demanding requirements of modern servo motor applications. These connectors are ideal for use with a wide range of servo motors, including AC Servo Motor Drivers, High Torque DC Servo Motors, and Brushless Servo Motors, ensuring reliable and efficient electrical connections that withstand rigorous operational conditions.

One of the standout features of the 6FX2003 connectors is their versatility in accommodating various wire gauges. They support wire gauges ranging from 18 to 24 AWG, as well as larger diameters from AWG 3 to 12. This broad compatibility allows engineers and technicians to use these connectors in diverse servo motor setups, whether the application involves delicate signal wiring or heavy-duty power transmission. The ability to handle such a wide range of wire gauges makes the 6FX2003 an excellent choice for both compact and high-power servo systems.

In terms of construction, the 6FX2003 connectors utilize a combination of metal and plastic materials. The robust metal components provide structural strength and durability, essential for maintaining secure connections in environments subject to vibration, temperature fluctuations, and mechanical stress. Meanwhile, the plastic elements contribute to insulation and protection against environmental factors, ensuring the longevity and safety of the connector assemblies. This hybrid material composition ensures that the 6FX2003 connectors can operate reliably in industrial and commercial servo motor installations.

The termination type of the 6FX2003 connectors is designed for both crimp and solder applications. This dual termination capability offers flexibility during installation, accommodating different assembly preferences and technical requirements. The crimp termination provides a quick and secure mechanical and electrical connection, ideal for high-volume production or field service work. Solder termination, on the other hand, ensures an excellent electrical bond and mechanical stability, which is crucial for applications demanding the highest reliability, such as those involving AC Servo Motor Drivers or Brushless Servo Motors.

Another critical aspect of the 6FX2003 connectors is their contact plating. The contacts feature silver plating and gold-plated pins, combining the beneficial properties of both metals. Silver plating offers excellent electrical conductivity and resistance to corrosion, which helps maintain low contact resistance and high signal integrity. The gold-plated pins further enhance the connector's performance by providing superior corrosion resistance and consistent contact quality over many mating cycles. This plating combination ensures that the connector can reliably transmit power and signals in demanding servo motor environments without degradation over time.

These connectors are particularly well-suited for use with High Torque DC Servo Motors, where the ability to handle significant current loads and maintain stable connections under mechanical stress is paramount. The reliable contact system and robust construction of the 6FX2003 make it an ideal component in systems where precision torque control and responsiveness are critical. Additionally, the connectors’ compatibility with Brushless Servo Motors ensures they can support the advanced control and efficiency requirements of these modern motor designs.

Overall, the 6FX2003 Servo Motor Connectors represent a high-quality, versatile solution for ensuring dependable electrical connections in a variety of servo motor applications. Their wide wire gauge compatibility, dual termination options, durable material composition, and superior contact plating make them a trusted choice for engineers working with AC Servo Motor Drivers, High Torque DC Servo Motors, and Brushless Servo Motors. Whether in automated manufacturing, robotics, or precision motion control systems, the 6FX2003 connectors provide the performance and reliability needed to keep servo motors operating at their best.

Features:

• Product Name: Servo Motor Connectors
• Voltage Rating: 1000V
• Application: Industrial Automation
• Operating Temperature: -40℃ to +105℃
• Termination Type: Crimp/Solder
• Number of Contacts: 4PIN, 6PIN, 8PIN, 12PIN, 17PIN
• Compatible with Brushless Servo Motor
• Suitable for High Torque DC Servo Motor
• Designed for AC Brushless Servo Motor applications

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of various industrial and automation applications. Originating from China and certified with CE and ISO9001 standards, these connectors ensure high reliability and quality for professional use. Their versatility allows them to be widely applied in brushless servo motor systems, electro hydraulic servo controls, and hydraulic brake motors, providing secure and efficient electrical connections essential for precise motor control and operation.

In the field of brushless servo motors, the 6FX2003 connectors play a crucial role in ensuring optimal power transmission and signal integrity. These motors are widely used in robotics, CNC machinery, and automated assembly lines, where precise motion control is critical. The connectors’ high current rating options, ranging from 1A to 10A and beyond, accommodate the varying power needs of these motors, while the silver and gold-plated contacts guarantee minimal electrical resistance and corrosion protection.

Electro hydraulic servo systems also benefit greatly from the NO MARK 6FX2003 connectors. These systems require robust and reliable connections to maintain accurate hydraulic pressure and flow control in applications such as aerospace actuators, industrial presses, and automotive servo valves. The connectors’ sturdy metal and plastic construction, combined with panel mount and cable mount options, allow for flexible installation tailored to different operational environments.

Hydraulic brake motors, which demand dependable and high-performance electrical interfaces, are another ideal application scenario for these connectors. Their compatibility with wire gauges from 18-24 AWG or even larger diameters (AWG 3-12) enables them to handle the substantial currents and voltages typical in braking systems, ensuring safety and responsiveness.

Furthermore, the NO MARK 6FX2003 connectors boast efficient logistics and supply capabilities, with a supply ability of 1000 pieces per day and a delivery time ranging from 1 to 3 working days. Orders start from a minimum quantity of 100 units, packaged securely in carton boxes. Flexible payment terms, including T/T and PayPal, make procurement straightforward for businesses worldwide.

Overall, these servo motor connectors provide a dependable solution for integrating and maintaining brushless servo motors, electro hydraulic servo controls, and hydraulic brake motor systems across diverse industrial settings, ensuring superior performance and operational longevity.

Customization:

Our Servo Motor Connectors (Model Number: 6FX2003) from NO MARK are designed to meet the highest standards of quality and performance. Manufactured in China and certified with CE and ISO9001, these connectors are ideal for applications involving AC Brushless Servo Motor, Electro Hydraulic Servo, and AC Servo Drive systems.

We offer product customization services tailored to your specific needs, including termination types such as Crimp and Solder to ensure secure and reliable connections. The connectors come with multiple contact options including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN configurations, supporting a voltage rating of up to 1000V.

Constructed from durable metal and plastic materials, these Servo Motor Connectors guarantee longevity and stability in demanding environments. Packaged carefully in carton boxes, we ensure safe delivery with a quick turnaround time of 1-3 working days.

Our minimum order quantity is 100 pieces, with a supply ability of 1000 pcs/day to meet bulk demands efficiently. Payment terms are flexible, accepting T/T and PayPal for your convenience.

Choose our customized Servo Motor Connectors to enhance the performance and reliability of your AC Brushless Servo Motor, Electro Hydraulic Servo, and AC Servo Drive applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and efficient connections for servo motors in various industrial applications. These connectors ensure secure signal transmission and power delivery, minimizing downtime and enhancing system performance.

We offer comprehensive technical support to assist with the selection, installation, and maintenance of our Servo Motor Connectors. Our team of experts is available to provide guidance on compatibility, wiring configurations, and troubleshooting to ensure optimal operation.

In addition to support services, we provide detailed product documentation, including datasheets, wiring diagrams, and installation manuals. These resources are designed to help engineers and technicians integrate our connectors seamlessly into their servo motor systems.

For service and repairs, our qualified technicians are equipped to handle connector diagnostics and replacements, ensuring minimal disruption to your operations. We also offer customized solutions tailored to specific application requirements.

Our commitment to quality and customer satisfaction means that you can rely on our Servo Motor Connectors and support services to maintain the performance and reliability of your servo motor systems.
